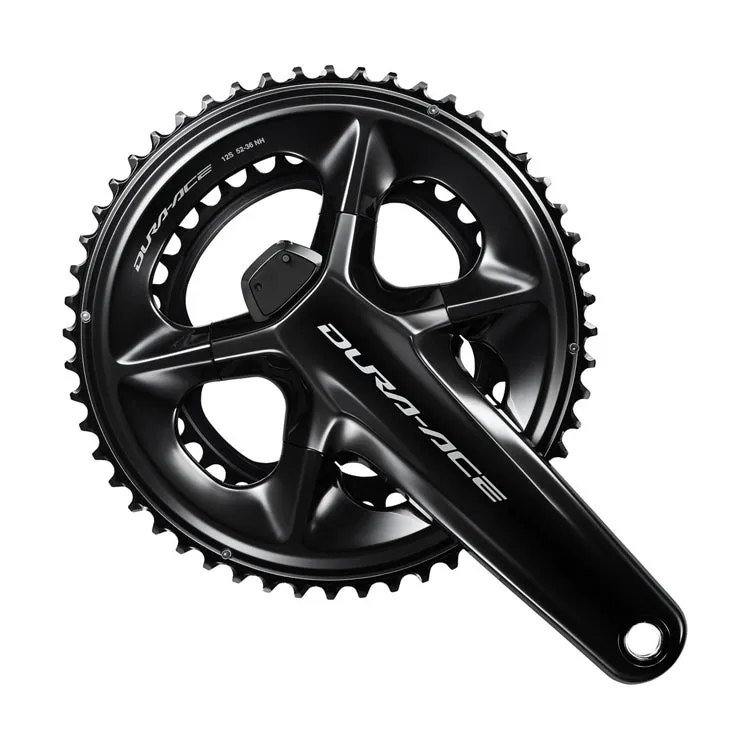

DURA-ACE Dual-Sided Power Meter HOLLOWTECH II Crankset 2x12-speed
FC-R9200-P

A vital tool for serious cyclists, the DURA-ACE FC-R9200-P power meter delivers reliable, waterproof, dual-sided power measurement. With a rechargeable battery and Bluetooth®LE and ANT connectivity, the FC-R9200-P is a user-friendly training partner.

The DURA-ACE FC-R9200-P power meter brings everything a data-driven cyclist could want. Its integrated, waterproof design brings all-weather reliability while delivering accurate information including left/right balance. A rechargeable Li-ion battery is user-friendly and Bluetooth®LE and ANT connectivity ensure easy setup.

FEATURES

Integrated, waterproof, and rechargeable Li-ion battery
Up to 300 hours of ride time * Depending on ANT /Bluetooth®LE settings
Accurate data collection
< 1.5% strain gage accuracy throughout the entire calibration range * Depending on ANT /Bluetooth®LE settings
Proprietary strain gauge
Possible to start quickly
Simple zero offset calibration with switch on transmitter
Active temperature compensation
Software automatically compensates for temperature changes
The provision of new force vector data makes it the optimal training tool to analyze and improve pedal stroke efficiency
With SHIMANO CONNECT Lab, you can analyze and visualize your training and power data

SPECIFICATIONS

MODEL NO FC-R9200-P
SERIES DURA-ACE R9200 Series
Average weight 745 (50-34T) 752 (52-36T) 774 (54-40T)
Remarks * Crankset specifications not listed here are the same as FC-R9200
Chainring combination 52-36T
Crank arm length (mm)_170 ✔
Crank arm length (mm)_172.5 ✔
Firmware update by E-TUBE PROJECT ✔
Accuracy (%) ±1.5
Active temperature compensation ✔
Battery_Charging cable EW-EC300
Battery_Charging port ✔
Battery_Life 300 h or longer
Battery_Type_Lithium ion ✔
Cadence mesurement_Magnet ✔
Di2 connectivity wireless_ANT _Bicycle power ✔
Di2 connectivity wireless_Bluetooth® LE_Cycling power ✔
Di2 connectivity wireless_Bluetooth® LE custom (*1)_Compatible with E-TUBE PROJECT ✔
Di2 connectivity wireless_Bluetooth® LE custom (*1)_Compatible with E-TUBE RIDE ✔
Force measurement_Left side ✔
Force measurement_Number of strain sensor 24
Force measurement_Right side ✔
LED for system status ✔
Number of control button 1
SD300 connector (pcs) 0
SD300 port (pcs) 0
SD50 connector (pcs) 0
SD50 port (pcs) 0
Zero offset_By control button ✔
Zero offset_By device ✔
